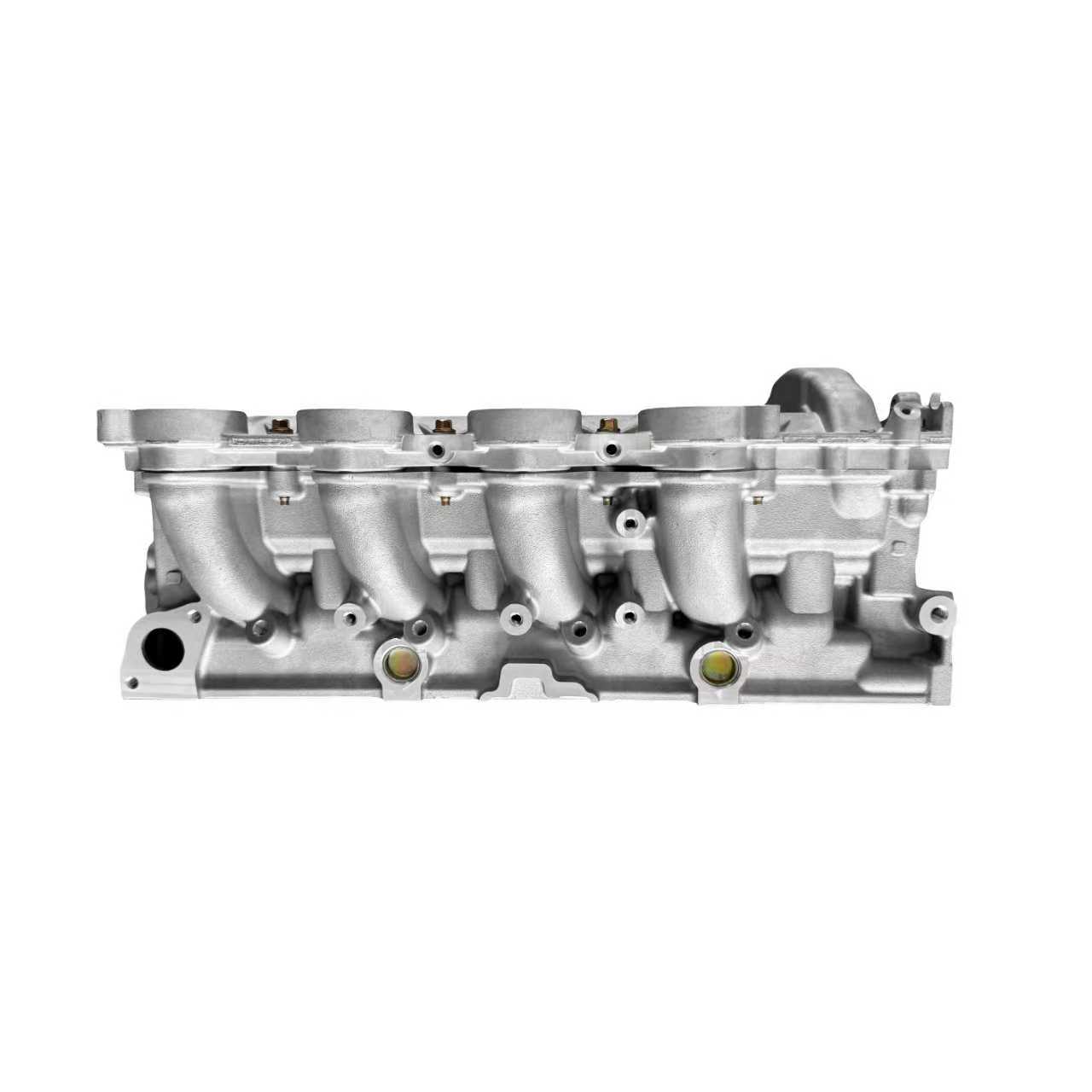

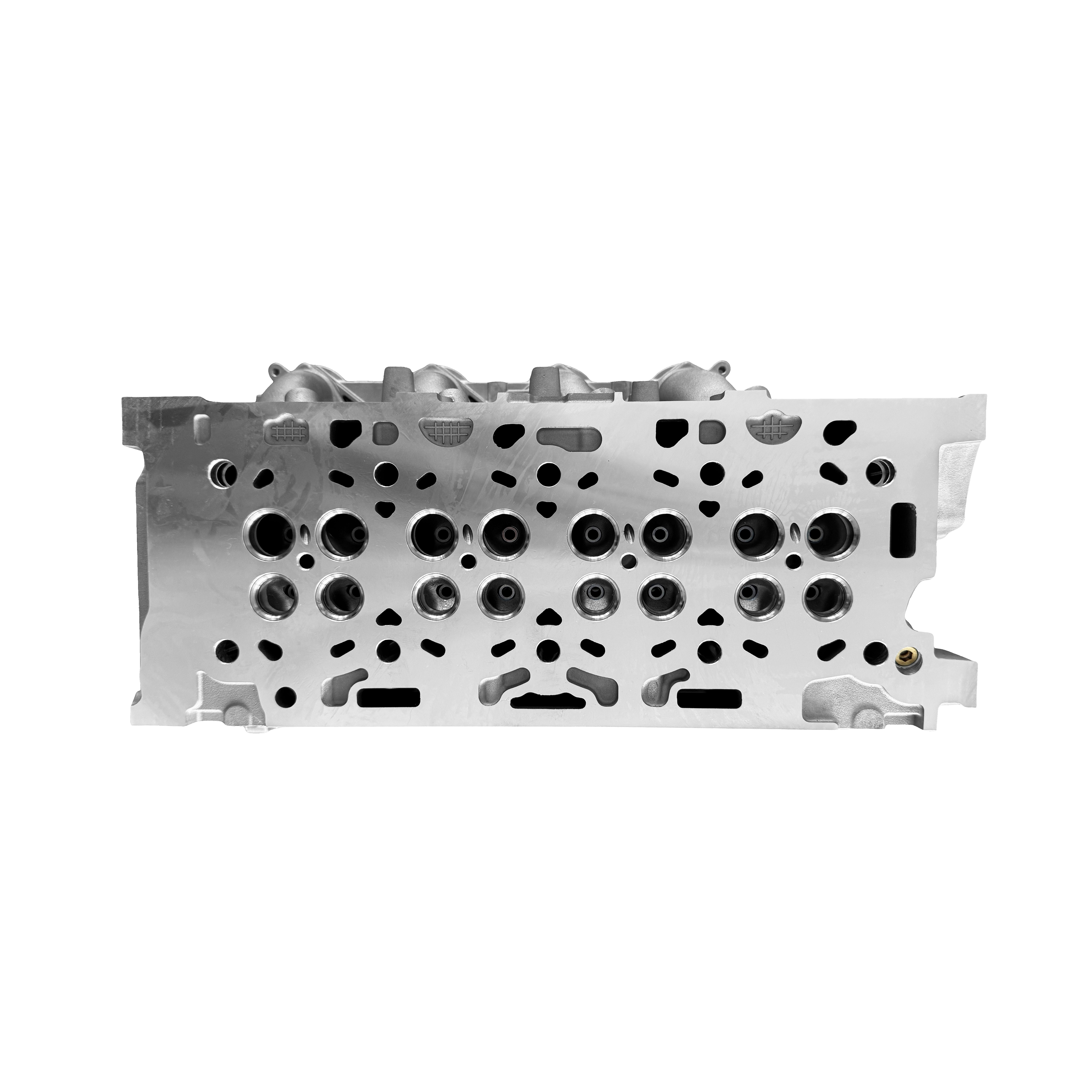

1477183 1767479 1676242 DV6 16V Diesel Engine Cylinder Head for CITROEN FORD MAZDA PEUGEOT VOLVO 1.6
Get A Quote
0200EH DV6 16V Cylinder Head Assembly. POWCODE supplies this aftermarket assembly with the cylinder head, intake and exhaust camshafts, camshaft housing, valves, valve springs, rocker arms, hydraulic tappets and inter-camshaft chain components. It is not a genuine vehicle-manufacturer part.
The tables below provide selected 1.6-litre, four-cylinder, 16-valve diesel applications. They are not the complete application range. Contact POWCODE with the original OE number, complete engine code and photographs of the existing assembly to confirm compatibility and the required configuration.
All entries below refer to 1560 cm³, four-cylinder, 16-valve diesel variants. The dates identify the listed catalogue application and do not establish compatibility with every vehicle produced during that period. Contact POWCODE to confirm the exact engine and assembly.
| Make | Vehicle Application | Production Period | Engine Code | Power Output | Engine Capacity | Cylinders / Valves | Fuel |
|---|---|---|---|---|---|---|---|
| Citroën | Berlingo / Berlingo First Box Body/MPV (M_) 1.6 HDi 90 | 2005/07–2011/12 | 9HX (DV6ATED4) | 66 kW / 90 HP | 1560 cm³ | 4 / 16 | Diesel |
| Citroën | Berlingo / Berlingo First MPV (MF_, GJK_, GFK_) 1.6 HDi 90 | 2005/07–2008/05 | 9HX (DV6ATED4) | 66 kW / 90 HP | 1560 cm³ | 4 / 16 | Diesel |
| Citroën | Berlingo Multispace (B9) 1.6 HDi 90 | 2008/04–2018/12 | 9HX (DV6ATED4) | 66 kW / 90 HP | 1560 cm³ | 4 / 16 | Diesel |
| Citroën | Berlingo Platform/Chassis (B9) 1.6 HDi 90 16V | 2008/04–2018/12 | 9HX (DV6ATED4) | 66 kW / 90 HP | 1560 cm³ | 4 / 16 | Diesel |
| Citroën | C3 I (FC_, FN_) 1.6 16V HDi | 2005/10–2009/12 | 9HX (DV6ATED4) | 66 kW / 90 HP | 1560 cm³ | 4 / 16 | Diesel |
| Citroën | C3 II (SC_) 1.6 HDi 90 | 2009/11–2016/09 | 9HX (DV6ATED4) | 66 kW / 90 HP | 1560 cm³ | 4 / 16 | Diesel |
| Citroën | C3 Picasso (SH_) 1.6 HDi | 2009/02–2015/03 | 9HX (DV6ATED4) | 66 kW / 90 HP | 1560 cm³ | 4 / 16 | Diesel |
| Citroën | C4 Coupe (LA_) 1.6 HDi | 2004/11–2011/07 | 9HX (DV6ATED4) | 66 kW / 90 HP | 1560 cm³ | 4 / 16 | Diesel |
| Citroën | C4 I (LC_) 1.6 HDi | 2004/11–2011/07 | 9HX (DV6ATED4) | 66 kW / 90 HP | 1560 cm³ | 4 / 16 | Diesel |
| Citroën | Xsara Picasso (N68) 1.6 HDi | 2005/09–2011/12 | 9HX (DV6ATED4) | 66 kW / 90 HP | 1560 cm³ | 4 / 16 | Diesel |
| Make | Vehicle Application | Production Period | Engine Code | Power Output | Engine Capacity | Cylinders / Valves | Fuel |
|---|---|---|---|---|---|---|---|
| Peugeot | 207 Hatchback Van (WA_, WC_) 1.6 HDi | 2007/04–2012/10 | 9HX (DV6ATED4) | 66 kW / 90 HP | 1560 cm³ | 4 / 16 | Diesel |
| Peugeot | 207 (WA_, WC_) 1.6 HDi | 2006/02–2013/10 | 9HX (DV6ATED4) | 66 kW / 90 HP | 1560 cm³ | 4 / 16 | Diesel |
| Peugeot | 307 (3A/C) 1.6 HDi | 2005/04–2009/03 | 9HX (DV6ATED4) | 66 kW / 90 HP | 1560 cm³ | 4 / 16 | Diesel |
| Peugeot | 307 SW (3H) 1.6 HDi 90 | 2005/04–2008/04 | 9HX (DV6ATED4) | 66 kW / 90 HP | 1560 cm³ | 4 / 16 | Diesel |
| Peugeot | 308 I (4A_, 4C_) 1.6 HDi | 2007/09–2014/10 | 9HX (DV6ATED4) | 66 kW / 90 HP | 1560 cm³ | 4 / 16 | Diesel |
| Peugeot | 308 SW I (4E_, 4H_) 1.6 HDi | 2007/09–2014/10 | 9HX (DV6ATED4) | 66 kW / 90 HP | 1560 cm³ | 4 / 16 | Diesel |
| Peugeot | Partner Box Body/MPV (5_, G_) 1.6 HDi 90 | 2005/08–2015/12 | 9HX (DV6ATED4) | 66 kW / 90 HP | 1560 cm³ | 4 / 16 | Diesel |
| Peugeot | Partner MPV (5_, G_) 1.6 HDi 90 | 2005/08–2015/12 | 9HX (DV6ATED4) | 66 kW / 90 HP | 1560 cm³ | 4 / 16 | Diesel |
| Make | Vehicle Application | Production Period | Engine Code | Power Output | Engine Capacity | Cylinders / Valves | Fuel |
|---|---|---|---|---|---|---|---|
| Ford | C-MAX (DM2) 1.6 TDCi | 2007/02–2010/09 | HHDA / HHDB | 66 kW / 90 HP | 1560 cm³ | 4 / 16 | Diesel |
| Ford | Focus C-MAX (DM2) 1.6 TDCi | 2005/02–2007/03 | HHDA / HHDB | 66 kW / 90 HP | 1560 cm³ | 4 / 16 | Diesel |
| Ford | Focus II (DA_, HCP, DP) 1.6 TDCi | 2005/01–2012/09 | HHDA / HHDB | 66 kW / 90 HP | 1560 cm³ | 4 / 16 | Diesel |
| Ford | Focus II Estate Van 1.6 TDCi | 2005/09–2011/07 | HHDA | 66 kW / 90 HP | 1560 cm³ | 4 / 16 | Diesel |
| Ford | Focus II Saloon (DB_, FCH, DH) 1.6 TDCi | 2005/04–2012/09 | HHDA / HHDB | 66 kW / 90 HP | 1560 cm³ | 4 / 16 | Diesel |
| Ford | Focus II Turnier (DA_, FFS, DS) 1.6 TDCi | 2004/07–2012/09 | HHDA / HHDB | 66 kW / 90 HP | 1560 cm³ | 4 / 16 | Diesel |
| Make | Vehicle Application | Production Period | Engine Code | Power Output | Engine Capacity | Cylinders / Valves | Fuel |
|---|---|---|---|---|---|---|---|
| Volvo | C30 (533) 1.6 D | 2006/10–2012/12 | D 4164 T | 80 kW / 109 HP | 1560 cm³ | 4 / 16 | Diesel |
| Volvo | S40 II (544) 1.6 D | 2005/01–2012/12 | D 4164 T | 81 kW / 110 HP | 1560 cm³ | 4 / 16 | Diesel |
| Volvo | S80 II (124) 1.6 D DRIVe | 2010/01–2011/12 | D 4164 T | 80 kW / 109 HP | 1560 cm³ | 4 / 16 | Diesel |
| Volvo | V50 (545) 1.6 D | 2005/01–2011/12 | D 4164 T | 81 kW / 110 HP | 1560 cm³ | 4 / 16 | Diesel |
| Volvo | V70 III (135) 1.6 D | 2009/07–2011/12 | D 4164 T | 80 kW / 109 HP | 1560 cm³ | 4 / 16 | Diesel |
This summary is derived from the selected vehicle rows above. Application Count means listed vehicle rows, not confirmed installations or the total number of compatible models. Contact POWCODE for engine versions not listed here.
| Make | Engine Code | Engine Capacity | Cylinders / Valves | Application Count | Used In |
|---|---|---|---|---|---|
| Citroën | 9HX (DV6ATED4) | 1560 cm³ | 4 / 16 | 10 | Selected Berlingo, C3 I, C3 II, C3 Picasso, C4 Coupe, C4 I and Xsara Picasso variants listed above |
| Make | Engine Code | Engine Capacity | Cylinders / Valves | Application Count | Used In |
|---|---|---|---|---|---|
| Peugeot | 9HX (DV6ATED4) | 1560 cm³ | 4 / 16 | 8 | Selected 207, 307, 307 SW, 308 I, 308 SW I and Partner variants listed above |
| Make | Engine Code | Engine Capacity | Cylinders / Valves | Application Count | Used In |
|---|---|---|---|---|---|
| Ford | HHDA | 1560 cm³ | 4 / 16 | 6 | Selected C-MAX, Focus C-MAX and Focus II variants listed above |
| Ford | HHDB | 1560 cm³ | 4 / 16 | 5 | Selected C-MAX, Focus C-MAX, Focus II, Focus II Saloon and Focus II Turnier variants listed above |
| Make | Engine Code | Engine Capacity | Cylinders / Valves | Application Count | Used In |
|---|---|---|---|---|---|
| Volvo | D 4164 T | 1560 cm³ | 4 / 16 | 5 | C30, S40 II, S80 II, V50 and V70 III variants listed above |
Main OE reference: 0200EH / 0200.EH. The references identify the replacement cylinder-head family; they do not define identical accessory contents. Contact POWCODE to confirm the required assembly configuration.
| Vehicle Manufacturer | OE References |
|---|---|
| Peugeot / Citroën | 0200EH / 0200.EH / 0200JJ / 0200.JJ |
| Ford | 1229884 / 1477183 / 1676242 / 1767479 |
| Volvo | 8603391 |
| Mazda | Y60110090 |
This listing describes the POWCODE assembled configuration, rather than a bare cylinder head. Contact POWCODE to match the original head, camshaft arrangement and external connections to the required replacement.
Contact POWCODE to confirm the detailed component list for your order. A valve cover, cylinder head gasket, cylinder head bolts and external engine accessories are not listed as included unless expressly agreed in the quotation.
Match the complete engine code and original OE reference, rather than selecting by displacement or vehicle name alone. The compatibility modules show selected 16-valve diesel applications and do not establish fitment for DV6 8V engines.
Contact POWCODE with the original head reference, engine identification and clear photographs of both manifold faces, the timing end, camshaft housing and lower mating face. Engine variants not shown in the tables require a separate check.
Contact POWCODE for the specific dimensions needed for your repair or assembly work. Mark the required mounting points, port positions, connection diameters or mating surfaces on photographs or a drawing so we can check the relevant data.
Product dimensions, assembly weight and packaging measurements must refer to the offered POWCODE configuration. Specifications for a bare head or another supplier's assembly must not be used as this product's measurements.
Cylinder head installation requires the repair procedure for the exact engine variant, including head-gasket selection, bolt requirements, tightening sequence and valve-timing setup. No universal torque value or gasket thickness is specified for all applications in this listing.
Contact POWCODE with your engine code and repair requirements to confirm available installation information and any separately required gaskets, bolts or timing components.
The product is supplied under the POWCODE brand as an aftermarket replacement. It is not a genuine vehicle-manufacturer part. OE numbers and vehicle names are used for identification and compatibility reference.
Contact POWCODE to confirm quantity, assembly configuration, packaging, delivery destination and lead time. An 18-month warranty is available subject to agreed terms. OEM/ODM and neutral or branded packaging requirements can be discussed with your enquiry.
Key Attributes
| Condition | New | Purpose | Engine repair / cylinder head replacement |
| Brand Name | POWCODE | Product Name | DV6 16V Cylinder Head Assembly |
| Main OE Reference | 0200EH / 0200.EH — for identification and compatibility reference | Engine Family | DV6 16V; exact engine variant to be confirmed with POWCODE |
| Engine Displacement | 1.6 L / 1560 cm³ | Engine Type | Diesel, 4 cylinders, 16 valves |
| Camshaft Configuration | Intake and exhaust camshafts with camshaft housing | Valve Components | Intake and exhaust valves with valve springs |
| Valvetrain Components | Rocker arms and hydraulic tappets included | Camshaft Drive Components | Inter-camshaft chain components included |
| Compatible Brands | Selected Peugeot, Citroën, Ford and Volvo applications listed in the compatibility tables | Fitment Support | Contact POWCODE with the original OE number, engine code and assembly photographs |
| Quality / Part Classification | POWCODE aftermarket replacement; not a genuine vehicle-manufacturer part | Warranty | 18 months, subject to agreed terms |
| OEM/ODM | Available | Packaging | POWCODE brand / customer-specified / neutral unbranded packaging |
Packaging and Delivery
| Packaging Options | POWCODE brand / customer-specified / neutral unbranded packaging | Packing Quantity | Contact POWCODE to confirm the packing quantity for your order |
| Package Dimensions | Contact POWCODE for dimensions of the agreed packaging configuration | Gross Weight | Contact POWCODE for the packed weight of the agreed assembly configuration |
| Net Weight | Contact POWCODE for the net weight of the supplied cylinder head assembly | Custom Packaging | Contact POWCODE to confirm branding, labelling and packing requirements |
Does OE reference 0200EH confirm that this assembly will fit my engine?
0200EH identifies a cylinder-head replacement family, but the complete assembly must also match the engine variant, camshaft arrangement and external connections. Please contact POWCODE with the original OE number, complete engine code and photographs of the existing assembly so we can help confirm the correct configuration.
Which components are included in this cylinder head assembly?
The confirmed configuration includes the cylinder head, intake and exhaust camshafts, camshaft housing, valves, valve springs, rocker arms, hydraulic tappets and inter-camshaft chain components. Please contact POWCODE to confirm the detailed order specification and any additional requirements. The valve cover, head gasket and head bolts are not listed as included unless separately agreed.
Can I use the same assembly for both DV6 8V and DV6 16V engines?
This listing is for a DV6 16V cylinder head assembly. The application information must not be extended to DV6 8V engines. Please contact POWCODE with your engine identification and original cylinder-head photographs if the valve configuration or engine version is uncertain.
How can I check the assembly against my original cylinder head?
Provide clear photographs of the intake and exhaust faces, timing end, camshaft housing and lower mating face, together with any original part numbers or casting markings. Please contact POWCODE to compare these details and identify any specific mounting, connection or dimensional checks required.
Can POWCODE provide detailed dimensions or installation information?
Please contact POWCODE with the exact engine code and identify the dimensions or installation information you need. We will check the relevant information available for the offered configuration. Gasket selection, head-bolt requirements, tightening procedures and valve-timing setup must follow the repair instructions for the exact engine variant.
Is this a genuine vehicle-manufacturer cylinder head assembly?
No. It is a POWCODE aftermarket replacement assembly, not a genuine vehicle-manufacturer part. OE numbers are used for identification and compatibility reference only. Please contact POWCODE to confirm product identification, packaging and the assembly specification recorded in your quotation.
How can I obtain shipping weight, package dimensions and delivery timing?
These depend on the agreed assembly contents, order quantity and packaging requirements. Please contact POWCODE with your required quantity and delivery destination so we can confirm net weight, packed weight, package dimensions and lead time for your order.
What information is needed for a warranty enquiry?
The assembly carries an 18-month warranty subject to agreed terms. Please contact POWCODE with the order reference, engine code, installation date, operating history and photographs or workshop findings relating to the issue. These details support assessment of the case and the applicable warranty terms.
