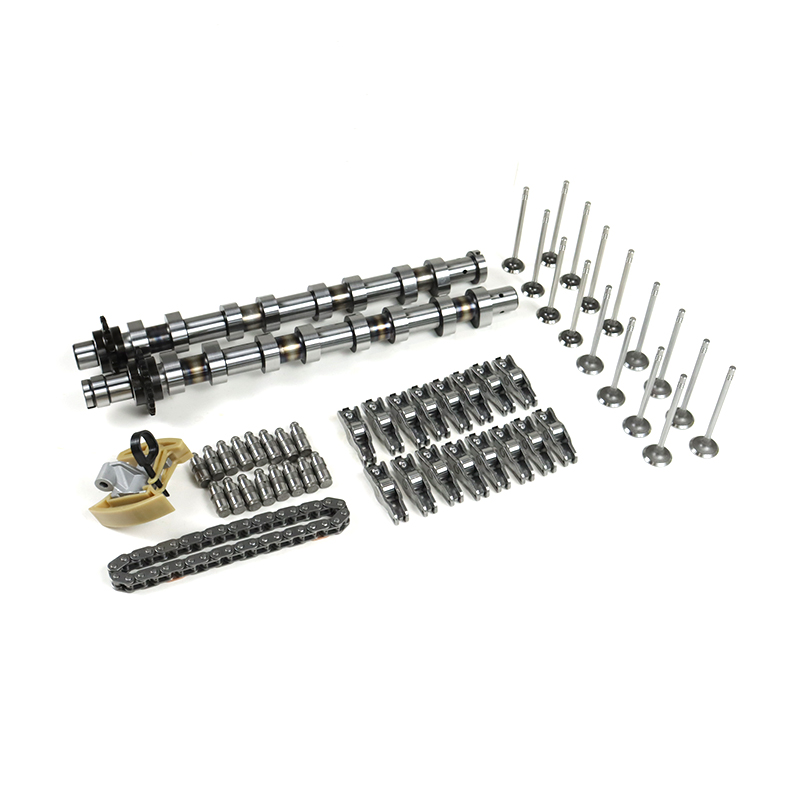

DV6 16V repair kit with camshafts, valves, rocker arms, hydraulic tappets, timing chain, timing belt, tensioners, pulleys, water pump and gasket

DV6 16V timing components with timing belt, water pump, gasket, pulleys and camshaft chain tensioner

DV6 16V repair kit with intake and exhaust camshafts, timing chain, chain tensioner, valves, rocker arms and hydraulic tappets

0801AH / 0801Z9 DV6 16V Camshaft, Valvetrain & Timing Belt Repair Kit with Water Pump for Peugeot, Citroën, Ford and MINI

0801AH / 0801Z9 DV6 16V Camshaft, Valvetrain & Timing Belt Repair Kit with Water Pump. POWCODE supplies this aftermarket repair kit for selected 1.6-litre, 1560 cm³, four-cylinder, 16-valve diesel applications. This configuration combines intake and exhaust camshafts, valves, rocker arms, hydraulic tappets, camshaft-to-camshaft timing chain components, external timing belt components, a water pump and its gasket. It covers valvetrain repair together with belt-drive and water-pump replacement, distinguishing it from the camshaft-and-chain kit and the chain-and-valvetrain kit.

Camshaft references 0801.AH and 0801.Z9 identify the exhaust and intake camshafts respectively. Timing belt reference 9645717480 and belt tensioner reference 9400829889 identify separate components; none of these numbers represents an original-equipment number for the complete POWCODE kit.

The application tables below contain selected vehicle and engine-code references. Production periods describe the listed vehicle variants, not an unconditional fitment range for every engine produced during those periods. Contact POWCODE for matching of the complete kit, timing belt specification, water-pump configuration and required components. The application tables are reference records; they do not independently establish that the supplied water pump fits every listed vehicle.

Find Your Vehicle or Engine Code

Example: Peugeot 307 / Citroen C4 / Ford Fiesta / MINI Cooper D / 9HZ / 9HX / G8DA / HHJA

DV6 16V Repair Kit with Water Pump Vehicle Application / Compatibility

Selected application references for 1560 cm³, four-cylinder, 16-valve diesel variants. The same vehicle model may also use a different engine or timing configuration. Contact POWCODE with your complete engine code and original component references for application matching.

CITROËN 24 selected vehicle records

Make	Vehicle Application	Listed Production Period	Power Output	Engine Capacity	Cylinders / Valves	Engine Code	Fuel
Citroën	BERLINGO / BERLINGO FIRST MPV (MF_, GJK_, GFK_) 1.6 HDI 90 (MF9HX)	2005/07–2008/05	66 kW / 90 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HX (DV6ATED4)	Diesel
Citroën	BERLINGO Box Body/MPV (B9) 1.6 HDi 110	2008/04–2018/12	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HZ (DV6TED4)	Diesel
Citroën	BERLINGO MULTISPACE (B9) 1.6 HDi 110	2008/04–2018/12	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HZ (DV6TED4)	Diesel
Citroën	BERLINGO MULTISPACE (B9) 1.6 HDi 90	2008/04–2018/12	66 kW / 90 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HX (DV6ATED4)	Diesel
Citroën	BERLINGO Platform/Chassis (B9) 1.6 HDi 90 16V	2008/04–2018/12	66 kW / 90 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HX (DV6ATED4)	Diesel
Citroën	C2 (JM_) 1.6 HDi	2005/09–2009/12	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HZ (DV6TED4)	Diesel
Citroën	C3 I (FC_, FN_) 1.6 16V HDi	2005/10–2009/12	66 kW / 90 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HX (DV6ATED4)	Diesel
Citroën	C3 PICASSO (SH_) 1.6 HDi	2009/02–2010/12	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HZ (DV6TED4)	Diesel
Citroën	C3 PICASSO (SH_) 1.6 HDi	2009/02–2015/03	66 kW / 90 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HX (DV6ATED4)	Diesel
Citroën	C4 Coupe (LA_) 1.6 HDi	2004/11–2011/07	66 kW / 90 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HX (DV6ATED4)	Diesel
Citroën	C4 Coupe (LA_) 1.6 HDi	2004/11–2011/07	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HY (DV6TED4) / 9HZ (DV6TED4)	Diesel
Citroën	C4 GRAND PICASSO I (UA_) 1.6 HDi	2006/10–2011/06	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HY (DV6TED4) / 9HZ (DV6TED4)	Diesel
Citroën	C4 I (LC_) 1.6 HDi	2004/11–2011/07	66 kW / 90 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HX (DV6ATED4)	Diesel
Citroën	C4 I (LC_) 1.6 HDi	2004/11–2011/07	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HY (DV6TED4) / 9HZ (DV6TED4)	Diesel
Citroën	C4 I Saloon 1.6 HDi	2006/07–2011/07	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HY (DV6TED4) / 9HZ (DV6TED4)	Diesel
Citroën	C4 PICASSO I MPV (UD_) 1.6 HDi	2007/02–2013/08	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HY (DV6TED4) / 9HZ (DV6TED4)	Diesel
Citroën	C5 II Break (RE_) 1.6 HDi (RE9HZC, RE9HYB)	2004/09–2008/01	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HY (DV6TED4) / 9HZ (DV6TED4)	Diesel
Citroën	C5 III Break (RW_) 1.6 HDi 110 (RW9HZC)	2008/02–2010/10	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HZ (DV6TED4)	Diesel
Citroën	C5 III (RD_) 1.6 HDi 110 (RD9HZC)	2008/02–2010/10	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HZ (DV6TED4)	Diesel
Citroën	C5 II (RC_) 1.6 HDi	2004/09–2008/01	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HY (DV6TED4) / 9HZ (DV6TED4)	Diesel
Citroën	JUMPY II Van 1.6 HDi 90 16V	2007/01–2016/03	66 kW / 90 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HU (DV6UTED4)	Diesel
Citroën	JUMPY II (VF7) 1.6 HDi 90 16V	2007/01–2016/03	66 kW / 90 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HU (DV6UTED4)	Diesel
Citroën	XSARA PICASSO (N68) 1.6 HDi	2004/05–2011/12	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HY (DV6TED4) / 9HZ (DV6TED4)	Diesel
Citroën	XSARA PICASSO (N68) 1.6 HDi	2005/09–2011/12	66 kW / 90 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HX (DV6ATED4)	Diesel

PEUGEOT 21 selected vehicle records

Make	Vehicle Application	Listed Production Period	Power Output	Engine Capacity	Cylinders / Valves	Engine Code	Fuel
Peugeot	206 CC (2D) 1.6 HDi 110	2005/04–2007/02	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HZ (DV6TED4)	Diesel
Peugeot	206 Hatchback (2A/C) 1.6 HDi 110	2004/05–2007/02	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HZ (DV6TED4) / 9HY (DV6TED4)	Diesel
Peugeot	207 CC (WD_) 1.6 HDi	2007/02–2015/01	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HZ (DV6TED4)	Diesel
Peugeot	207 Hatchback Van (WA_, WC_) 1.6 HDi	2007/04–2012/10	66 kW / 90 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HX (DV6ATED4)	Diesel
Peugeot	207 SW (WK_) 1.6 HDi	2007/06–2012/12	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HZ (DV6TED4)	Diesel
Peugeot	207 (WA_, WC_) 1.6 HDi	2006/02–2013/10	66 kW / 90 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HX (DV6ATED4)	Diesel
Peugeot	207 (WA_, WC_) 1.6 HDi	2006/02–2013/10	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HZ (DV6TED4) / 9HY (DV6TED4)	Diesel
Peugeot	3008 I MPV (0U_) 1.6 HDi	2009/06–2016/08	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HZ (DV6TED4)	Diesel
Peugeot	307 (3A/C) 1.6 HDi 110	2004/02–2009/03	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HZ (DV6TED4) / 9HY (DV6TED4)	Diesel
Peugeot	307 Break (3E) 1.6 HDi 110	2004/02–2008/04	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HZ (DV6TED4) / 9HY (DV6TED4)	Diesel
Peugeot	307 SW (3H) 1.6 HDI 110	2003/11–2007/12	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HZ (DV6TED4) / 9HY (DV6TED4)	Diesel
Peugeot	308 I (4A_, 4C_) 1.6 HDi	2007/09–2014/10	66 kW / 90 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HX (DV6ATED4)	Diesel
Peugeot	308 I (4A_, 4C_) 1.6 HDi	2007/09–2014/10	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HZ (DV6TED4)	Diesel
Peugeot	308 SW I (4E_, 4H_) 1.6 HDi	2007/09–2014/10	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HZ (DV6TED4)	Diesel
Peugeot	407 (6D_) 1.6 HDi 110 (6D9HZC, 6D9HYC)	2004/05–2010/12	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HZ (DV6TED4)	Diesel
Peugeot	5008 (0U_, 0E_) 1.6 HDi	2009/09–2017/03	80 kW / 110 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HZ (DV6TED4)	Diesel
Peugeot	EXPERT TEPEE (VF3X_) 1.6 HDi 90 16V	2007/01–2016/03	66 kW / 90 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HU (DV6UTED4)	Diesel
Peugeot	PARTNER Box Body/MPV 1.6 HDi	Not specified	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HZ (DV6TED4)	Diesel
Peugeot	PARTNER Box Body/MPV 1.6 HDi 16V	Not specified	68 kW / 92 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HX (DV6ATED4)	Diesel
Peugeot	PARTNER Box Body/MPV 1.6 HDi 16V 4x4	Not specified	66 kW / 90 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HX (DV6ATED4)	Diesel
Peugeot	PARTNER TEPEE 1.6 HDi	Not specified	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HZ (DV6TED4)	Diesel

FORD 7 selected vehicle records

Make	Vehicle Application	Listed Production Period	Power Output	Engine Capacity	Cylinders / Valves	Engine Code	Fuel
Ford	FIESTA V (JH_, JD_) 1.6 TDCi	2004/11–2008/06	66 kW / 90 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	HHJA / HHJB	Diesel
Ford	FIESTA V Van 1.6 TDCi	2007/04–2009/09	66 kW / 90 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	HHJA / HHJB	Diesel
Ford	FOCUS C-MAX (DM2) 1.6 TDCi	2003/10–2007/03	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	G8DA / G8DB	Diesel
Ford	FOCUS C-MAX (DM2) 1.6 TDCi	2005/02–2007/03	66 kW / 90 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	HHDA / HHDB	Diesel
Ford	FOCUS II Estate Van 1.6 TDCi	2004/07–2011/07	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	G8DA	Diesel
Ford	FOCUS II Estate Van 1.6 TDCi	2005/09–2011/07	66 kW / 90 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	HHDA	Diesel
Ford	FUSION (JU_) 1.6 TDCi	2004/11–2012/12	66 kW / 90 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	HHJA / HHJB	Diesel

MINI 3 selected vehicle records

Make	Vehicle Application	Listed Production Period	Power Output	Engine Capacity	Cylinders / Valves	Engine Code	Fuel
MINI	CLUBMAN (R55) Cooper D	2007/10–2010/02	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HZ (DV6TED4)	Diesel
MINI	MINI (R56) Cooper D	2006/11–2010/09	80 kW / 109 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HZ (DV6TED4)	Diesel
MINI	MINI (R56) One D	2009/06–2010/07	66 kW / 90 HP	1560 cm³ / 1.6 L	4 cylinders / 16 valves	9HZ (DV6TED4)	Diesel

DV6 16V Repair Kit with Water Pump Engine Code / Compatibility

Engine codes below correspond to the selected vehicle records above. A shared engine family or displacement alone does not establish complete-kit interchangeability. Contact POWCODE for the matching camshaft, valvetrain and timing configuration.

CITROËN 4 engine-code records

Make	Engine Code	Engine Family	Engine Capacity	Cylinders / Valves	Selected Vehicle References	Fuel
Citroën	9HX	DV6ATED4	1560 cm³ / 1.6 L	4 cylinders / 16 valves	Berlingo / C3 I / C3 Picasso / C4 I / C4 Coupe / Xsara Picasso	Diesel
Citroën	9HY	DV6TED4	1560 cm³ / 1.6 L	4 cylinders / 16 valves	C4 I / C4 Coupe / C4 I Saloon / C4 Picasso I / C4 Grand Picasso I / C5 II / Xsara Picasso	Diesel
Citroën	9HZ	DV6TED4	1560 cm³ / 1.6 L	4 cylinders / 16 valves	Berlingo / C2 / C3 Picasso / C4 / C5 / Xsara Picasso variants listed above	Diesel
Citroën	9HU	DV6UTED4	1560 cm³ / 1.6 L	4 cylinders / 16 valves	Jumpy II Van / Jumpy II	Diesel

PEUGEOT 4 engine-code records

Make	Engine Code	Engine Family	Engine Capacity	Cylinders / Valves	Selected Vehicle References	Fuel
Peugeot	9HX	DV6ATED4	1560 cm³ / 1.6 L	4 cylinders / 16 valves	207 / 207 Hatchback Van / 308 I / Partner variants listed above	Diesel
Peugeot	9HY	DV6TED4	1560 cm³ / 1.6 L	4 cylinders / 16 valves	206 Hatchback / 207 / 307 / 307 Break / 307 SW	Diesel
Peugeot	9HZ	DV6TED4	1560 cm³ / 1.6 L	4 cylinders / 16 valves	206 / 207 / 3008 I / 307 / 308 I / 308 SW I / 407 / 5008 / Partner variants listed above	Diesel
Peugeot	9HU	DV6UTED4	1560 cm³ / 1.6 L	4 cylinders / 16 valves	Expert Tepee 1.6 HDi 90 16V	Diesel

FORD 6 engine-code records

Make	Engine Code	Engine Description	Engine Capacity	Cylinders / Valves	Selected Vehicle References	Fuel
Ford	G8DA	1.6 TDCi, DV6 16V family	1560 cm³ / 1.6 L	4 cylinders / 16 valves	Focus C-MAX / Focus II Estate Van	Diesel
Ford	G8DB	1.6 TDCi, DV6 16V family	1560 cm³ / 1.6 L	4 cylinders / 16 valves	Focus C-MAX	Diesel
Ford	HHDA	1.6 TDCi, DV6 16V family	1560 cm³ / 1.6 L	4 cylinders / 16 valves	Focus C-MAX / Focus II Estate Van	Diesel
Ford	HHDB	1.6 TDCi, DV6 16V family	1560 cm³ / 1.6 L	4 cylinders / 16 valves	Focus C-MAX	Diesel
Ford	HHJA	1.6 TDCi, DV6 16V family	1560 cm³ / 1.6 L	4 cylinders / 16 valves	Fiesta V / Fiesta V Van / Fusion	Diesel
Ford	HHJB	1.6 TDCi, DV6 16V family	1560 cm³ / 1.6 L	4 cylinders / 16 valves	Fiesta V / Fiesta V Van / Fusion	Diesel

MINI 1 engine-code record

Make	Engine Code	Engine Family	Engine Capacity	Cylinders / Valves	Selected Vehicle References	Fuel
MINI	9HZ	DV6TED4	1560 cm³ / 1.6 L	4 cylinders / 16 valves	Clubman R55 Cooper D / R56 Cooper D / R56 One D variants listed above	Diesel

Component OE Reference Numbers

The following references identify individual components. They do not identify a complete original-equipment repair kit. The water pump and gasket have separate component identification requirements; contact POWCODE for their references and specifications for the supplied configuration.

Component	Original Equipment Reference	Reference Scope
Exhaust Camshaft	0801.AH / 0801AH	Exhaust-side camshaft reference
Intake Camshaft	0801.Z9 / 0801Z9	Intake-side camshaft reference
Timing Belt	9645717480	Timing belt reference, not the complete belt kit
Timing Belt Tensioner	9400829889	Belt tensioner reference, not the chain tensioner

This is a POWCODE aftermarket product, not a genuine vehicle manufacturer product. Vehicle manufacturer names and OE numbers are used only for component identification and application matching.

DV6 16V Camshaft, Valvetrain & Timing Belt Repair Kit with Water Pump Details

Kit contents and supply configuration

Intake camshaft
Exhaust camshaft
Intake and exhaust valves
Rocker arms
Hydraulic tappets
Camshaft timing chain, chain tensioner and guide components
Timing belt
Timing belt tensioner
Timing belt idler pulley
Timing belt tensioner bolt
Water pump
Water-pump gasket

The water pump and water-pump gasket are included in this configuration. Contact POWCODE for component quantities, the detailed packing list and any additional parts required for your repair. The cylinder head, camshaft housing, valve springs, valve stem seals, other engine gaskets and cylinder-head bolts are outside the listed supply scope unless separately agreed.

Timing belt, camshaft timing chain and water-pump configuration

The DV6 16V configuration uses an external timing belt drive and a separate camshaft-to-camshaft chain. The belt tensioner and the chain tensioning components perform different functions and must be identified separately.

The water pump and its gasket are supplied with the listed timing and valvetrain components. Contact POWCODE for the timing belt tooth count, belt width, tensioner arrangement, chain configuration, water-pump specification and gasket profile applicable to your engine.

Application matching and component dimensions

Contact POWCODE with the complete engine code, original component OE numbers and photographs of the removed parts. Vehicle VIN information can also assist application research where suitable records are available.

POWCODE can assist with camshaft identification, valve dimensions, rocker arm and hydraulic tappet configuration, timing components, water-pump mounting details and gasket profile. Contact POWCODE for component dimensions and specifications for this kit.

Installation and repair considerations

Installation should be carried out by a qualified technician using the repair information and timing tools specified for the exact engine variant. Camshaft timing, chain and belt tensioning, water-pump installation, and cooling-system filling and bleeding must follow the applicable instructions.

Where timing failure has occurred, the repair assessment should also consider associated cylinder head, valve, camshaft support and lubrication damage. Contact POWCODE to discuss the replacement components required for the identified repair scope.

Warranty, packaging and order support

Warranty: 18 months, subject to the agreed supply terms. Neutral packaging and POWCODE branded packaging are available; customer-specific packaging requirements can be discussed.

Contact POWCODE for the quotation, packaging dimensions, shipment weight, required quantity and delivery arrangements for this kit configuration.

Get A Quote Next Products

Key Attributes

Condition	New	Purpose	Engine repair / replacement
Brand Name	POWCODE	Product Name	Camshaft, Valvetrain & Timing Belt Repair Kit with Water Pump
Engine Family	DV6 16V	Engine Displacement	1.6 L / 1560 cm³
Engine Type	Diesel	Cylinder / Valve Configuration	4 cylinders / 16 valves
Exhaust Camshaft OE	0801.AH / 0801AH	Intake Camshaft OE	0801.Z9 / 0801Z9
Timing Belt OE Reference	9645717480	Timing Belt Tensioner OE Reference	9400829889
Camshaft Components	Intake and exhaust camshafts	Valvetrain Components	Intake and exhaust valves, rocker arms and hydraulic tappets
Chain Drive Components	Camshaft timing chain, chain tensioner and guide components	Belt Drive Components	Timing belt, belt tensioner, idler pulley and tensioner bolt
Cooling Component	Water pump included	Water Pump Sealing	Water-pump gasket included
Vehicle Applications	Selected Citroën, Peugeot, Ford and MINI applications; see the product application tables	Technical Specifications	Contact POWCODE for component dimensions, timing belt specifications, water-pump details and complete-kit matching
Product Classification	Aftermarket replacement kit; not a genuine vehicle manufacturer product	OE Reference Use	Individual component identification only; not a complete original-equipment kit number
Warranty	18 months, subject to agreed supply terms	OEM/ODM	Available
Packaging	POWCODE branded / neutral packaging; customer-specific requirements on request	Quality	Aftermarket replacement; not genuine OE. Contact POWCODE for available specifications and quality documentation.

CURRENT PRODUCT · VALVETRAIN, TIMING BELT & WATER PUMP KIT

Compare the 0801AH / 0801Z9 DV6 16V Repair Kits

You are viewing the camshaft, valvetrain, timing belt and water pump configuration. It includes the camshaft timing chain and tensioner, valves, rocker arms, hydraulic tappets, external timing-belt components, water pump and water-pump gasket. Compare it with the two narrower repair configurations below. Shared camshaft OE references do not mean that all three kits contain the same components.

CAMSHAFT + CHAIN REPAIR

Camshaft & Timing Chain Kit

Select when the intake and exhaust camshafts, camshaft-to-camshaft timing chain and chain tensioner require replacement.

Covers the camshaft drive components. Valves, rocker arms, hydraulic tappets, timing-belt components and water pump are outside this configuration.

View Camshaft & Chain Kit →

CAMSHAFT + VALVETRAIN REPAIR

Camshaft, Chain & Valvetrain Kit

Select when the repair also requires intake and exhaust valves, rocker arms and hydraulic tappets alongside the camshafts, timing chain and chain tensioner.

Adds the valve and valvetrain components. The external timing belt, belt tensioner, pulleys and water pump are serviced separately.

View Chain & Valvetrain Kit →

CURRENT PRODUCT · WITH WATER PUMP

Camshaft, Valvetrain, Belt & Water Pump Kit

This configuration combines camshaft, chain and valvetrain replacement with renewal of the timing belt, belt tensioner, pulleys and water pump.

Includes the valve and valvetrain components, external belt-drive components, water pump and water-pump gasket in the same supply configuration.

Current Product — Water Pump Version

Repair scope / component	Camshaft & Chain Kit	Chain & Valvetrain Kit	CURRENT PRODUCT Valvetrain, Belt & Water Pump Kit
Intake + exhaust camshafts	✓ Included	✓ Included	✓ Included
Camshaft timing chain + chain tensioner	✓ Included	✓ Included	✓ Included
Intake + exhaust valves	— Not included	✓ Included	✓ Included
Rocker arms	— Not included	✓ Included	✓ Included
Hydraulic tappets / lifters	— Not included	✓ Included	✓ Included
Timing belt	— Not included	— Not included	✓ Included
Belt tensioner + idler pulleys	— Not included	— Not included	✓ Included
Water pump + water-pump gasket	— Not included	— Not included	✓ Included
Primary repair scope	Camshaft and inter-camshaft chain replacement	Camshaft, chain, valve and valvetrain replacement	Valvetrain repair with belt-drive and water-pump replacement

Application support for the current water-pump version

Contact POWCODE with the engine code, original component references, photographs and your workshop's findings. OE 0801AH identifies the exhaust camshaft and 0801Z9 identifies the intake camshaft; these references do not identify the complete kit. Contact POWCODE for component dimensions, timing-belt specifications, water-pump matching and the detailed packing list for this configuration.

Packaging Type	POWCODE branded packaging / neutral packaging	Custom Packaging	Contact POWCODE for customer-specific packaging requirements
Packing Contents	Camshaft, valvetrain, timing chain and timing belt components supplied according to the agreed packing list	Packing Quantity	Contact POWCODE for the packing arrangement of the selected kit configuration
Package Dimensions	Contact POWCODE for dimensions of the selected packing configuration	Gross Weight	Contact POWCODE for the packed shipment weight
Net Weight	Contact POWCODE for the net weight of the selected kit	Shipping Arrangements	Contact POWCODE with the order quantity and delivery destination

How does this kit differ from a DV6 16V camshaft and timing chain kit?

This configuration adds intake and exhaust valves, rocker arms, hydraulic tappets and external timing belt components to the camshaft and chain components. Contact POWCODE for the detailed component quantities and packing list for your required configuration.

Do OE references 0801AH and 0801Z9 identify the complete repair kit?

No. 0801AH identifies the exhaust camshaft, while 0801Z9 identifies the intake camshaft. Likewise, 9645717480 refers to the timing belt and 9400829889 to the belt tensioner. Contact POWCODE to match these individual references to the complete kit you require.

Can this kit be used on both DV6 8V and DV6 16V engines?

This listing covers selected DV6 16V applications. A shared timing belt reference does not establish compatibility of the camshafts, valves or other valvetrain components with an 8V engine. Contact POWCODE with your engine code and original component references for application matching.

How can I obtain the belt specifications and valvetrain dimensions?

Contact POWCODE for the timing belt tooth count and width, camshaft specifications, valve dimensions, and rocker arm and hydraulic tappet details. Send the original component references and clear photographs so POWCODE can identify the configuration relevant to your engine.

Is this kit sufficient to repair an engine after timing belt or chain failure?

The required repair scope depends on the damage found during inspection. Replacement timing and valvetrain components alone may not address damage to the cylinder head, camshaft supports, pistons or lubrication system. Contact POWCODE with your technician’s inspection findings to discuss the replacement components required.

Can the new camshafts be installed in the existing camshaft housing?

The existing housing and bearing surfaces require inspection for wear, scoring and damage. New camshafts do not correct a damaged housing. Contact POWCODE with photographs, component references and your technician’s measurements to discuss the required replacement scope.

Are water pumps, gaskets and additional fasteners included?

These items are not listed in this kit’s stated supply scope. Contact POWCODE if your repair requires a water pump, gaskets or additional fasteners, and request that each required item be specified in the quotation and packing list.

Is this a genuine vehicle manufacturer kit?

No. It is a POWCODE aftermarket replacement kit. Vehicle manufacturer names and OE references are used for identification and application matching; they do not indicate genuine manufacturer supply. Contact POWCODE for product specifications, available quality documentation and the applicable 18-month warranty terms.
